Hotel Guest Room Control System - Expansion Input/Output Module

G-R1016

This expansion input/output module features 10 high-voltage outputs, 6 digital outputs and 16 digital inputs. It connects to the general I/O module via CAN bus. Each relay output on the control module supports a maximum load current of 10A, and each channel can independently control a 2200W lighting circuit (resistive load). The module is equipped with 16 I/O dry contact input interfaces to receive control signals from card readers for power activation, door contact switches, reset panels, sensors and other devices.

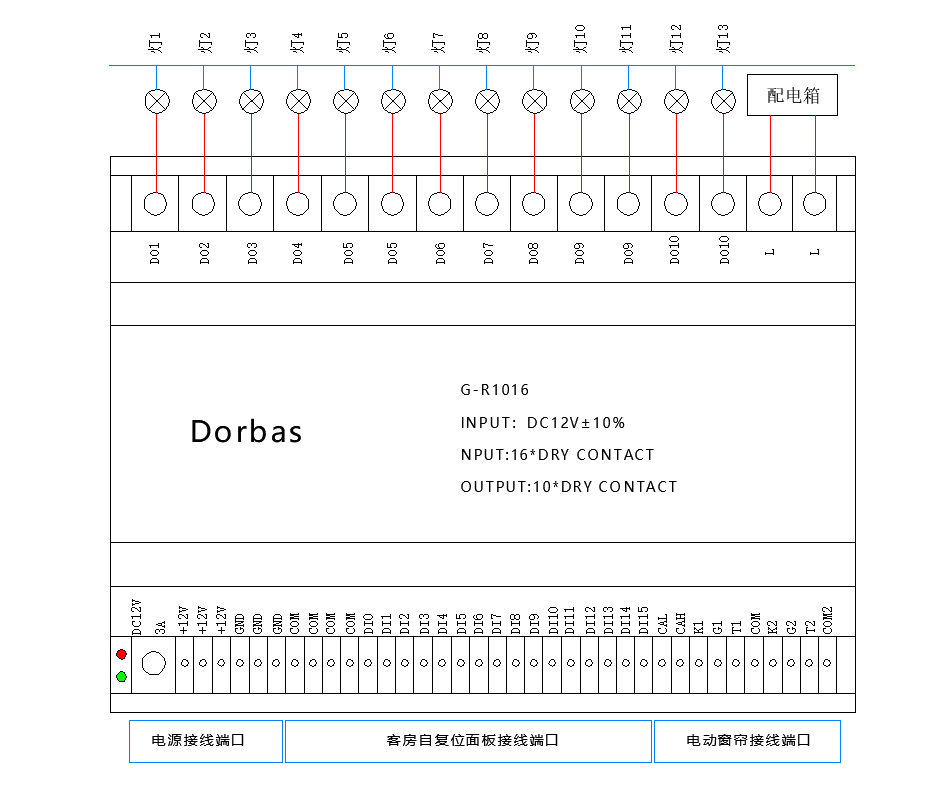

Function Overview Specifications Dimensional Drawings and Wiring Diagrams Operation and Installation Instructions Related Products

Function Overview

Independent control of 10 switching circuits for lights / loads;
Delay ON / OFF function;
Timed shutdown and cyclic switching functions;
On-site data saving and restoration;
Status query and response function;
Configurable relay status selection upon bus power loss and voltage recovery;
Scene combination control function;
Dry contact I/O input interfaces for receiving control signals from card power switches, door magnetic contacts, reset panels, sensors and other devices;
Dry contact I/O output interfaces to control 2 sets of electric curtains

Specifications

Input Voltage: DC12V±10%
High-power Output Channels: 10 channels (for lighting)
Pure Resistive Load: max 10A
Low-voltage Input: 16 channels (compatible with card power switches, door magnetic contacts, reset panels, sensors, etc.)
Low-voltage Output: 6 channels (for 2 sets of electric curtains)
Expansion I/O Module: Embedded CPU built-in
Communication Interface: CAN
Communication Speed: CAN / 100KBPS
Dynamic Current: ≤15mA
Static Current: ≤8mA
Dynamic Power Consumption: ≤390mW
Static Power Consumption: ≤210mW
Operating Temperature: -5℃ ~ +45℃
Storage Temperature: -25℃ ~ +55℃
Transport Temperature: -25℃ ~ +70℃
Relative Humidity: Max 90%
Housing Material: Flame-retardant casing
Water Protection Class: IP20
Protection Class (IEC 61140): Class III
Overvoltage Category (IEC 60664-1): Category III
Certifications: CE, FCC

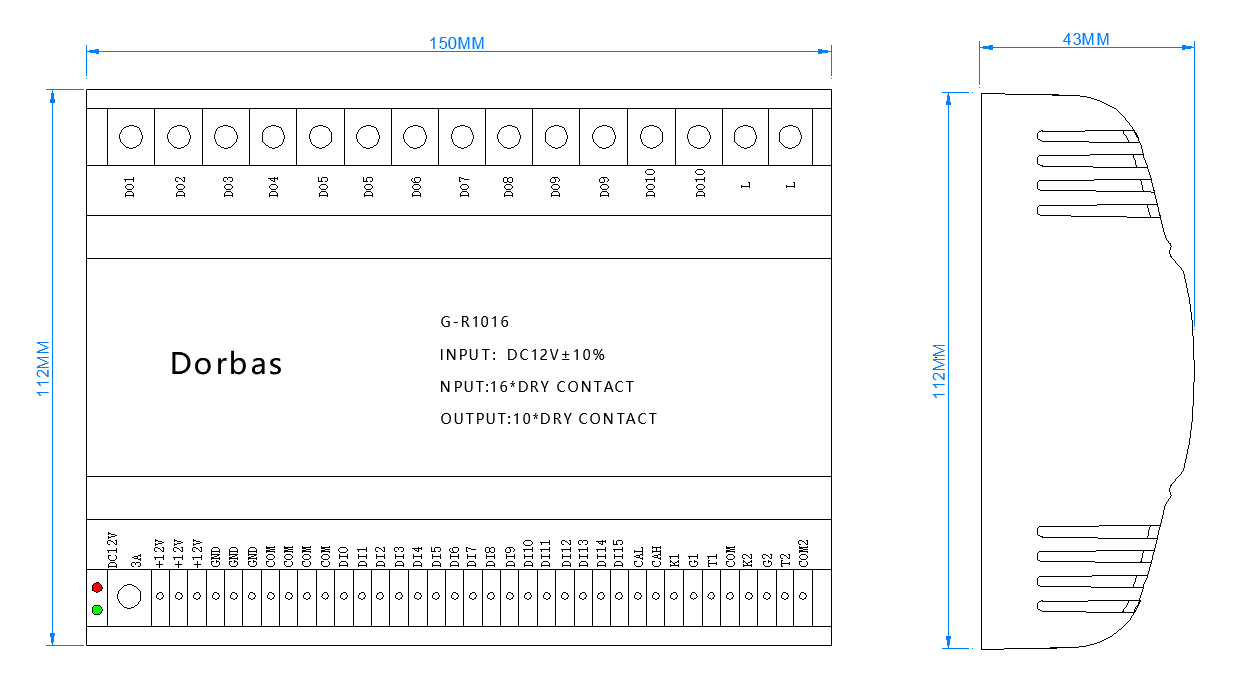

Dimension (W × H × D): 150mm*110mm*55mm
Mounting Method: 35mm DIN rail mounting
