Villa Solutions-Dorbas

Implemented Functions

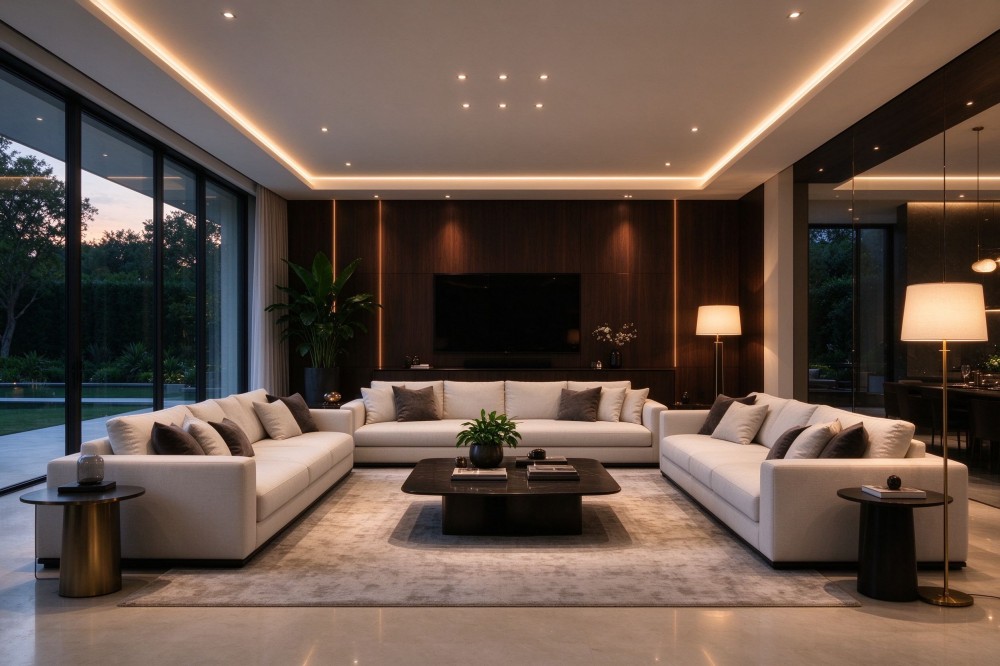

Living Room · Reception Scene

Living Room · Reception Scene

One-Tap Scenes: One-click switching among Reception, Movie, Reading and Away modes.
Lighting Atmosphere: Independent dimming for chandeliers, spotlights and light strips to create multiple ambiances.
Curtain Linkage: Automated curtain opening and closing linked with scenes to balance indoor light automatically.
Air Conditioning Control: Central air conditioning integrated with smart panels for remote temperature adjustment.
Remote Control: Remote management of whole-house devices via mobile APP and voice assistants.

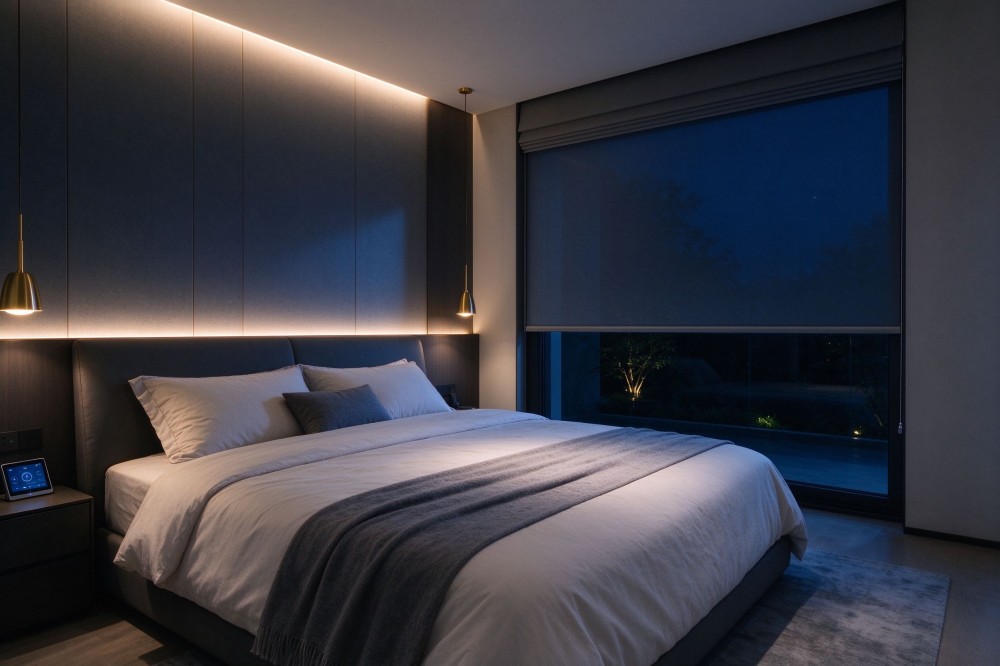

Bedroom · Sleep Scene

Bedroom · Sleep Scene

Night-time Toilet Lighting: Low-brightness foot lights automatically turn on for midnight trips without disturbing sleep.
Sleep Mode: One-click to turn off lights, adjust curtains and air conditioning for peaceful rest.
Morning Wake-up: Timed gradually brightening lights and automatic curtain opening for natural wake-up.
Temperature & Humidity Linkage: Temperature and humidity sensors interlock with air conditioning to maintain a comfortable sleeping environment.
Motorized Curtains: Zoned control for blackout curtains and sheer curtains for flexible adjustment.

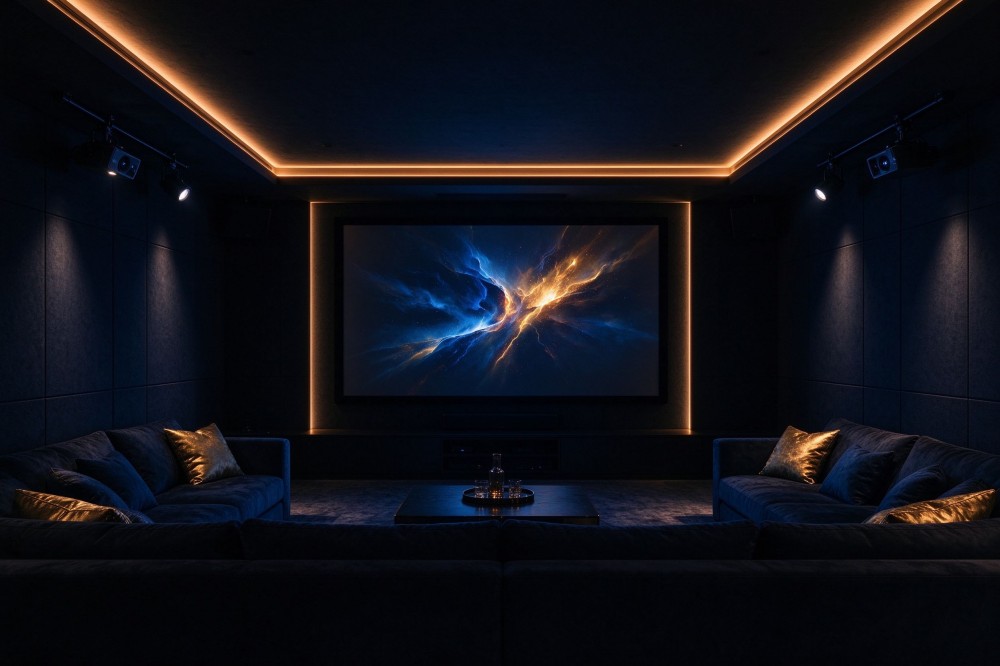

Home Theater · Entertainment Scene

Home Theater · Entertainment Scene

Movie Mode: Lights dim automatically, curtains close, and audio-visual devices activate with one tap.
Smart Central Control: iPad centralized control of lights, curtains, projection screen and audio system.
Lighting Linkage: Lights change synchronously with movie scenes.
Stepless Dimming: Stepless cyclic dimming for resistive-load lighting, with memory of pre-shutdown status.

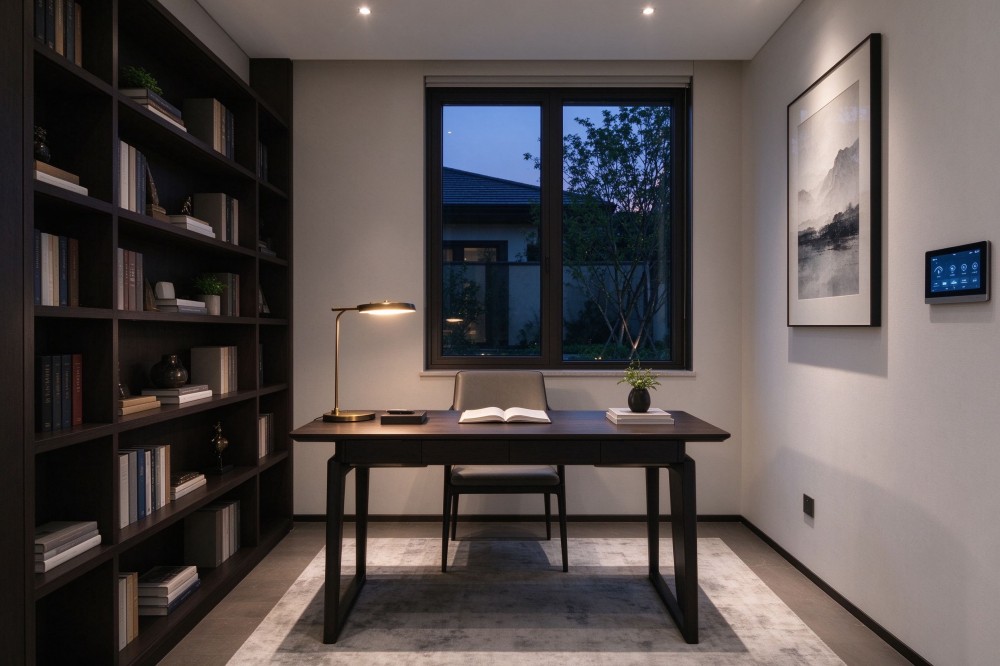

Study · Office Scene

Study · Office Scene

Constant Illuminance Control: Maintains constant illuminance at the desk area to protect eyes during reading and work.
Smart Panel: One-click switching among Reading, Meeting and Rest scenes.
Environmental Linkage: CO₂, temperature and humidity sensors interlock with fresh air and air conditioning systems.
Remote Control: Remotely view and control study devices when away from home.

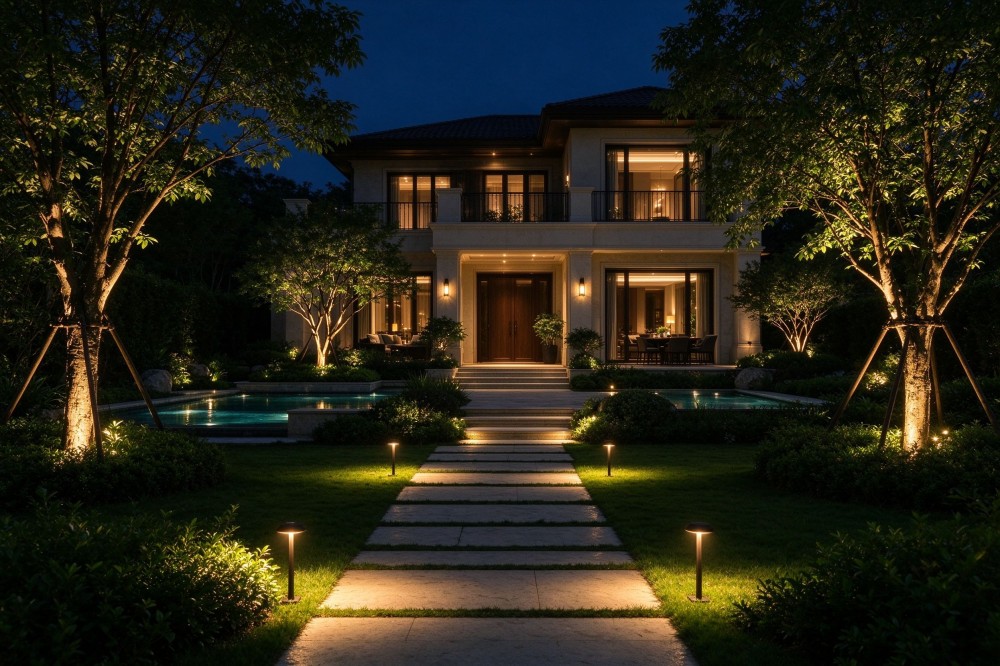

Courtyard · Outdoor Scene

Courtyard · Outdoor Scene

Astronomical Clock: Automatically calculates sunrise and sunset based on latitude and longitude to turn courtyard lighting on and off.
Scene Lighting: Zoned independent control for courtyard lamps, lawn lamps and water feature lights.
Security Linkage: Courtyard surveillance interlocks with lighting; lights turn on automatically for alerts upon anomalies.
Rain Sensor Linkage: Motorized awnings retract automatically when raining to protect outdoor facilities.

Solution Architecture

The system adopts a layered distributed architecture, consisting of three major modules: Platform Management Layer, Network Transmission Layer and Field Device Layer. It is compatible with mainstream protocols including KNX, BACnet, DALI and Modbus, fully connecting various villa subsystems such as lighting, curtains, air conditioning, audio-visual and security. It eliminates device silos to realize unified monitoring, intelligent linkage and data intercommunication of whole-house devices.

1

Platform Management Layer

(Cloud Platform · APP · Local Host)

Unified management via mobile APP, smart central control panel and local host; lighting, curtains, air conditioning, audio-visual and security displayed on one screen. One-click activation for Home, Away, Sleep and Reception scenes. Real-time visibility of whole-house status, and local host control remains available offline during network outages.

1

Network Transmission Layer

(TCP/IP · KNX · Zigbee · DALI)

Reliable transmission through villa LAN and floor network switches, supporting multi-protocol access such as RS485, DALI, KNX and Modbus. It uploads device status and environmental data upstream, and delivers start/stop, dimming and scene commands downstream for bidirectional connectivity.

1

Field Device Layer

(Panels · Sensors · Controllers · Actuators)

Smart panels, dimming modules and curtain motor controllers perform control functions; air conditioning thermostat modules and fresh air units connect to building automation; smart electric and water meters measure energy consumption; illuminance, human presence, temperature & humidity and CO₂ sensors perceive the environment; door contacts, infrared detectors and cameras provide security protection.

1

Covered Systems: Smart Lighting · Smart Curtains · HVAC · Audio & Video Entertainment · Security Monitoring · Whole-house Scenes. The six subsystems operate collaboratively on a single platform.

Core Value

Comfort Experience

Enjoy welcome scene upon arrival, with lights, temperature and curtains ready automatically. Freely switch scenes with one click for a calm and elegant home living experience.
Energy Saving & Consumption Reduction

Lights dim as required, air conditioning operates based on status and time periods, and curtains link with natural daylight. Multiple links work together to cut consumption and reduce long-term residential energy use.
Safety Protection

Security monitoring, door contact detection, abnormal alerts and lighting linkage. You can keep track of home security status in real time even when away.
Efficient Management

Dual-channel management for local and remote access. Control all whole-house devices on a single screen to cut redundant operations and improve life efficiency.
