2-channel 10A thyristor dimming actuator module

DLA50210-K

The 2-channel 10A thyristor dimming actuator module is a modular mounting device adopting leading-edge dimming technology. It is suitable for voltage dimming lamps such as LED spotlights, downlights, halogen lamps and quartz lamps. The module is equipped with manual control buttons to support local operation. LED indicators respectively reflect the dimming status of the two independent channels. It can realize zoning intelligent dimming control for multiple lights and is applied in building intelligent lighting projects.

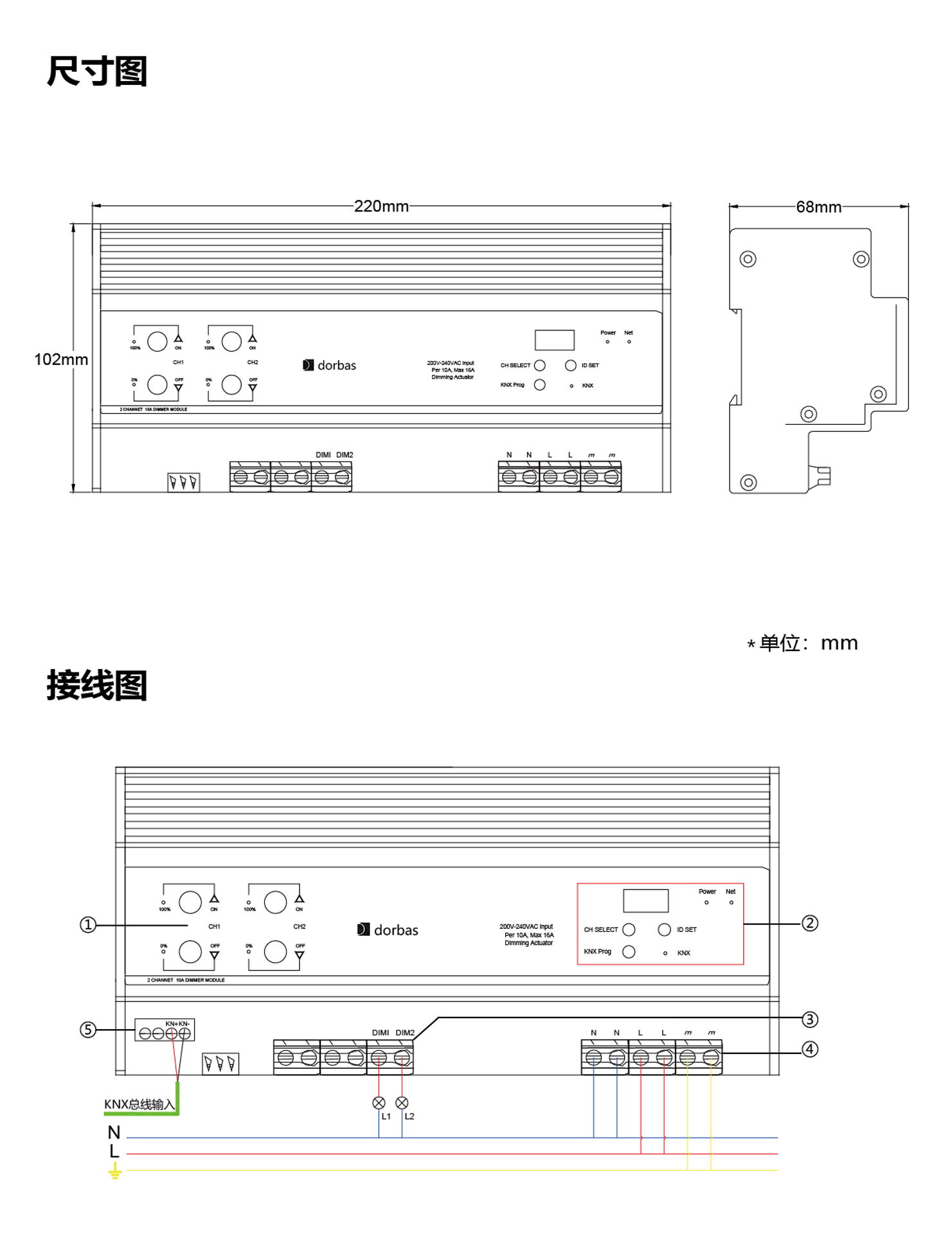

Function Overview Specifications Dimensional Drawings and Wiring Diagrams Operation and Installation Instructions

Function Overview

2 independent channels with thyristor leading-edge dimming output, rated 10A per channel;
Supports local manual dimming control via buttons;
Supports relative dimming and absolute dimming;
Each channel features status report feedback function;
Timing cycle function to achieve staircase lighting and cyclic flashing effects;
On-site parameter saving and restoration function;
Supports multi-channel scene combination control;
Compatible with voltage-type leading-edge dimming lamps such as LED spotlights, downlights, halogen lamps and quartz lamps.

Specifications

Main Output: 2-channel 10A thyristor dimming
Rated Voltage: 200~240VAC
Operating Frequency: 50/60Hz
Bus Voltage: 21-30VDC
Bus Current: ≤12mA
Operating Power: ≤3.6 W
Main Output: ≤16A (1 channel)
Dimensions (L x W x H): 220mm × 102mm × 68mm
Weight (approx.): approx. 1.4KG
Housing Material: Metal
Mounting: 35mm DIN rail mounting
Operating Temperature: -5°C…+45°C
Storage Temperature: -25°C…+55°C
Transport Temperature: -25°C…+70°C
Relative Humidity: max 90%

Operation and Installation Instructions

Installation Instructions

This device is installed in the distribution box and can be mounted on 35 mm DIN rails complying with DIN EN 60715 standard. To facilitate quick installation of the device inside the distribution box, proper operation, testing, inspection and maintenance of the device must be ensured.

Safe Operation and Maintenance
(1) Maintain a well-ventilated environment
(2) Keep away from moisture, vibration and dust during operation.
(3) Do not expose to rain, liquids or corrosive gas.
(4) Dry the device promptly if it gets wet or contaminated by liquid.
(5) Contact professional maintenance personnel or our company if the device malfunctions.
