Hospital Solutions-Dorbas

Implemented Functions

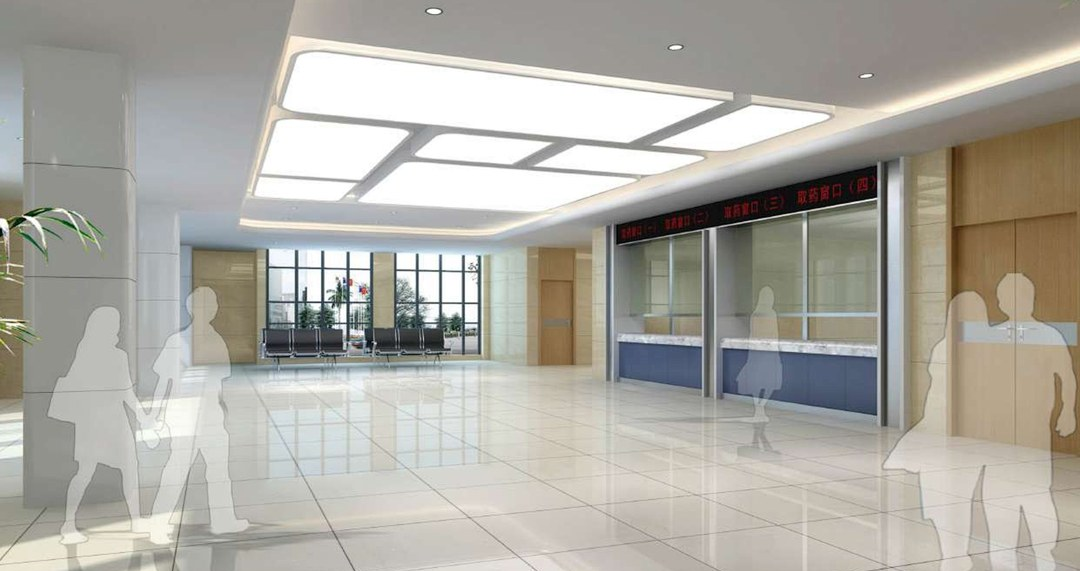

Outpatient Area · Waiting Hall

Outpatient Area · Waiting Hall

Central Control: The main control center monitors all lighting circuits uniformly, and the computer operation interface realizes integrated intelligent management.
DALI Dimming: Independent switching and dimming for single or multiple lamps within one circuit, enabling fine adjustment of illuminance in waiting areas.
Constant Illuminance Control: Automatic adjustment via illuminance sensors; brightens when ambient light is weak and dims when ambient light is strong.
Timed Scenes: Adjust lighting effects by time segments including Daytime, Dusk, Night and Midnight to create a soothing medical environment.
Panel Scene Mode: One-touch master on/off for each floor and scene switching via smart panels at service desks, supporting cross-area intercontrol.

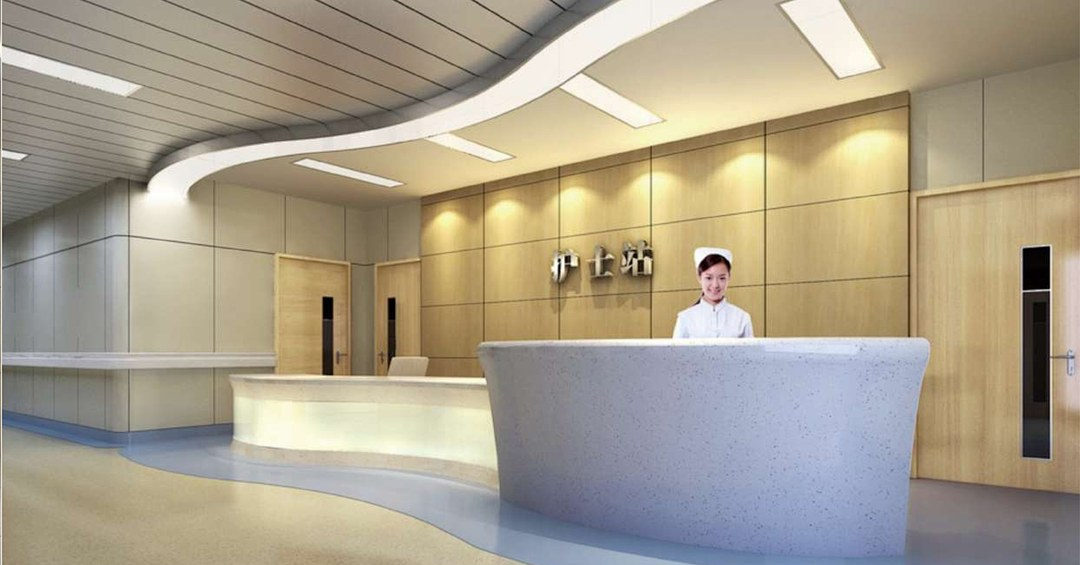

Nurse Station · Public Corridors

Nurse Station · Public Corridors

Sensor Control: Motion sensors for public corridors and elevator lobbies; lights turn on when people are present and turn off with delay after vacancy.
Alternating Circuit Control: Lighting circuits arranged alternately to achieve 1/3, 2/3 and full circuit modes.
Six Scene Modes on Smart Panel: One-touch switching among Master On, Sensor Mode, Energy Saving, Bright, Soft and Master Off.
Timing Control: Automatic timing for multiple periods including Daytime, Dusk, Night, Midnight and Holidays.
Central Control: The main control center monitors all lighting circuits uniformly for integrated intelligent management.

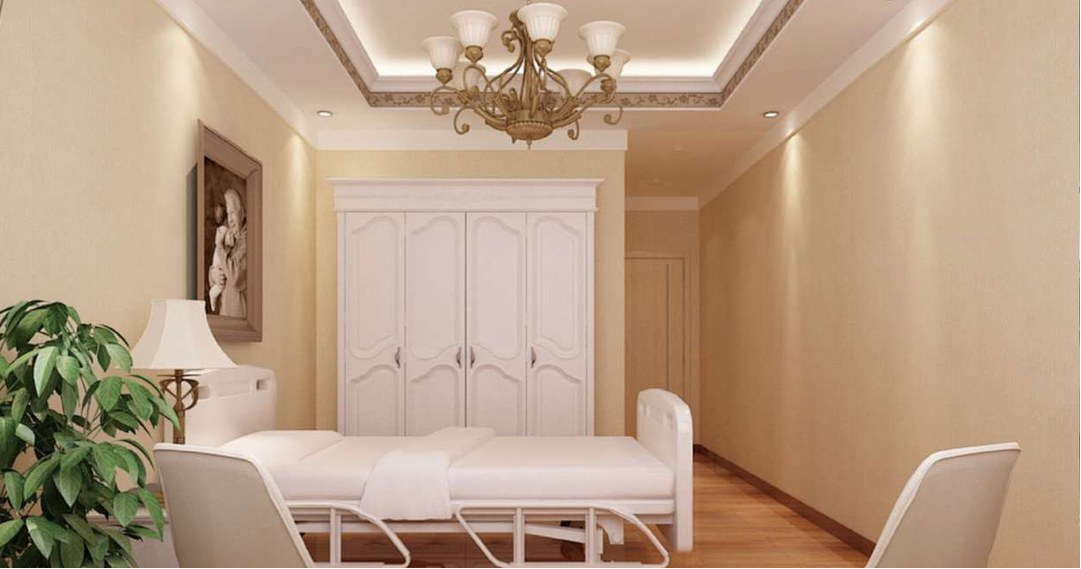

VIP Ward

VIP Ward

Bedside Smart Panel: Scene-based control, one-touch switching among TV, Leisure and Sleep modes.
Bathroom Sensor: Motion sensor activates lights upon entry and turns them off after people leave.
iPad Integrated Control: APP enables integrated control of lighting, curtains, air conditioning and electrical appliances.
Dimming Scenes: Dominated by warm light sources with gradual brightening and dimming to effectively relax patients.
Service Call: Bedside call panels send instant notifications to nurse station and duty room, compatible with emergency system.

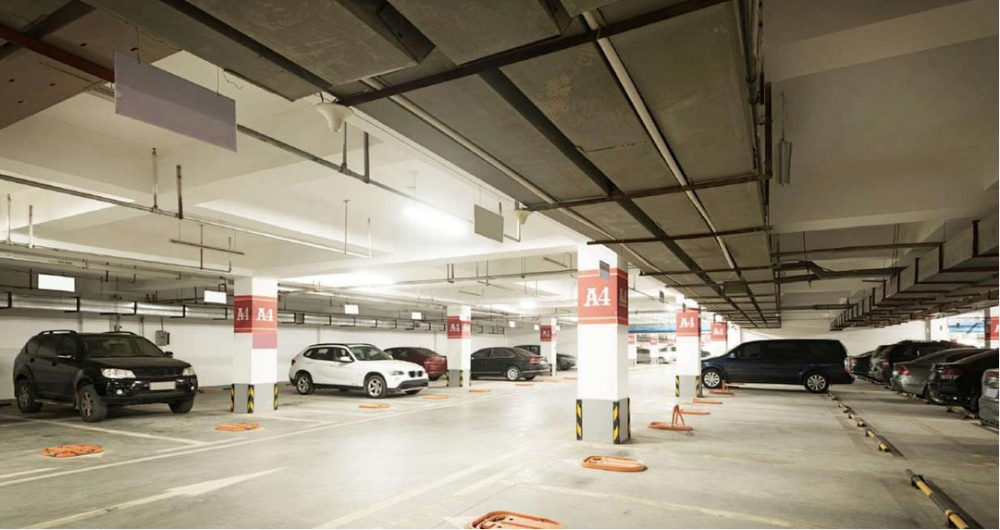

Underground Parking Garage

Underground Parking Garage

Microwave Sensor: Lights turn on when vehicles or people approach the traffic aisle and automatically shut down after a 5–10 minute delay upon departure.
DALI Intelligent Dimming: Lights at entrances and exits adjust brightness according to ambient light, achieving smooth transition between indoor and outdoor illuminance.
Time-divided Control: Automatic activation and deactivation of corresponding lighting circuits for peak, normal, off-peak and holiday periods.
Environmental Control: CO concentration detectors monitor air quality to automatically start and stop exhaust fans.
Fire Linkage: Emergency lighting circuits are forcibly turned on and normal lighting cut off under emergency conditions.

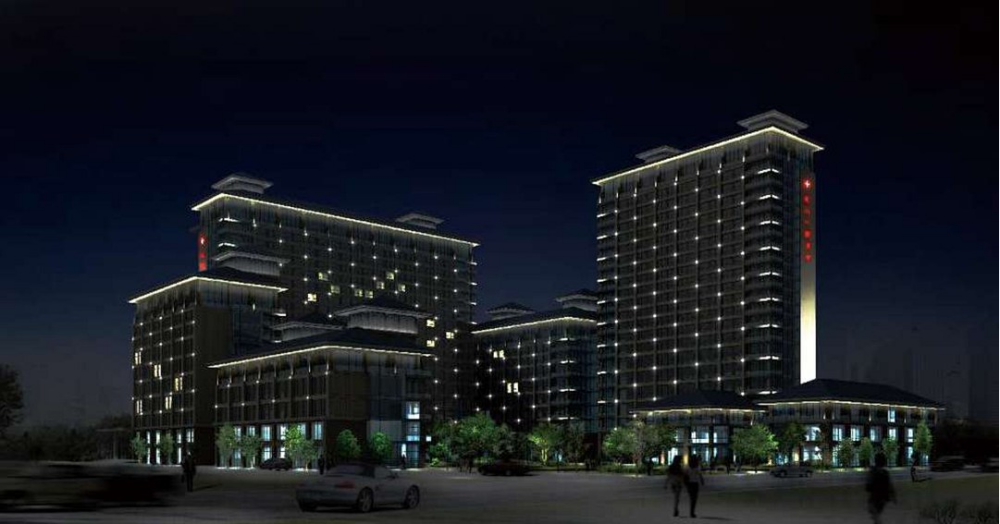

Outdoor Plaza · Building Floodlighting

Outdoor Plaza · Building Floodlighting

Astronomical Clock Control: Automatically calculates local sunset and sunrise with high precision for accurate timed control.
Holiday Lighting Programming: Set seasonal lighting effects with yearly, weekly, daily schedules and dedicated holiday configurations.
Smart Touchscreen: Preset scenes stored on duty room touchscreen for instant access; password protection available to prevent misoperation.
System Integration: Adopts open standard international protocols for interlocked control with BA and fire emergency systems.

Solution Architecture

The system adopts a layered, distributed architecture consisting of three major modules: the Platform Management Layer, the Network Transmission Layer, and the Field Device Layer. It is compatible with mainstream industrial protocols such as KNX, BACnet, and DALI, and fully integrates hospital lighting, HVAC, fire protection, power distribution, and other subsystems, breaking down device silos to achieve unified monitoring, intelligent linkage, and data interoperability across all scenarios.

1

Platform Management Layer

(Centralized Monitoring · Scene Dispatch · Data Decision)

The centralized monitoring center, nurse stations, and logistics departments are managed in a unified way. The smart control platform, building automation platform, energy monitoring platform, and environment monitoring platform are displayed on the same screen. Scenes for outpatient areas, wards, and public areas are dispatched with one tap, with the status of the entire hospital visible in real time.

1

Network Transmission Layer

(TCP/IP · KNX · BACnet · Modbus · DALI)

The hospital LAN and floor network switches provide reliable transmission, supporting multi-protocol access via RS485, DALI, BACnet, Modbus, and more. Uplink data collects device status and energy consumption; downlink commands dispatch start/stop, dimming, and scene instructions, achieving two-way connectivity.

1

Field Device Layer

(Controllers · Panels · Sensors · Actuators)

Smart panels, dimming modules, and DDC controllers execute control. Air handling units, fresh air units, and fan coil units are connected to the building control system. Smart electricity, water, and heating/cooling meters measure energy consumption. CO, temperature & humidity, occupancy, and illuminance sensors perceive the environment.

1

Covered systems: Smart Lighting · Building Automation · Energy Monitoring · Environment Monitoring · Smart Ward Nursing · Fire Emergency Linkage — six subsystems operate collaboratively on a single platform.

Core Value

Energy Saving and Consumption Reduction

Public lighting saves energy by scene, air conditioning runs by status and time period, and parking garage CO linkage provides on-demand ventilation — multiple measures work together to reduce consumption and lower the hospital's operational energy use over the long term.
Comfort & Health

Constant illuminance in waiting areas, adjustable warm light in wards, and real-time control of CO, temperature, and humidity create a soothing medical environment for patients and a comfortable working environment for medical staff.
Safety & Reliability

Emergency lighting with forced switching via fire linkage, low-voltage control for safe and reliable operation, and prompt call-service response safeguard the hospital's continuous operations and patient safety.
Efficient Operations & Maintenance

Nurse stations, logistics, and the monitoring center get tiered visibility, with equipment, energy, and environment all on one screen. Faults are proactively alerted and maintained remotely, greatly reducing manual inspections.
