4-in-1 temperature and humidity sensor
DTS613-K
The DTS613-K is a 4-in-1 sensor for illuminance, infrared motion, temperature and humidity. It cyclically outputs illuminance, temperature and humidity data. It supports infrared motion detection, trigger by temperature & humidity changes, logical linkage between infrared and brightness, infrared motion master-slave function, multi-channel data output in different formats, and can be linked to control lighting and air conditioning equipment.
- Cyclic output of illuminance, temperature and humidity values;
- 2 channels each for illuminance, temperature and humidity control, supporting 1-bit, 4-bit and 1-byte data output;
- Infrared motion trigger control function;
- Temperature change trigger control function;
- Humidity change trigger control function;
- Logic function for infrared motion and brightness;
- Infrared motion master-slave function;
- Enable or disable channel control output of illuminance and infrared motion via communication objects;
- Combined use of illuminance and motion to jointly control lighting;
- Combined use of temperature and humidity to jointly control air conditioner switches;
- 4-in-1 sensor integrating infrared motion, illuminance, temperature and humidity.
- Bus Input: 21-30VDC
- Bus Current: ≤12mA
- Operating Power: <360mW

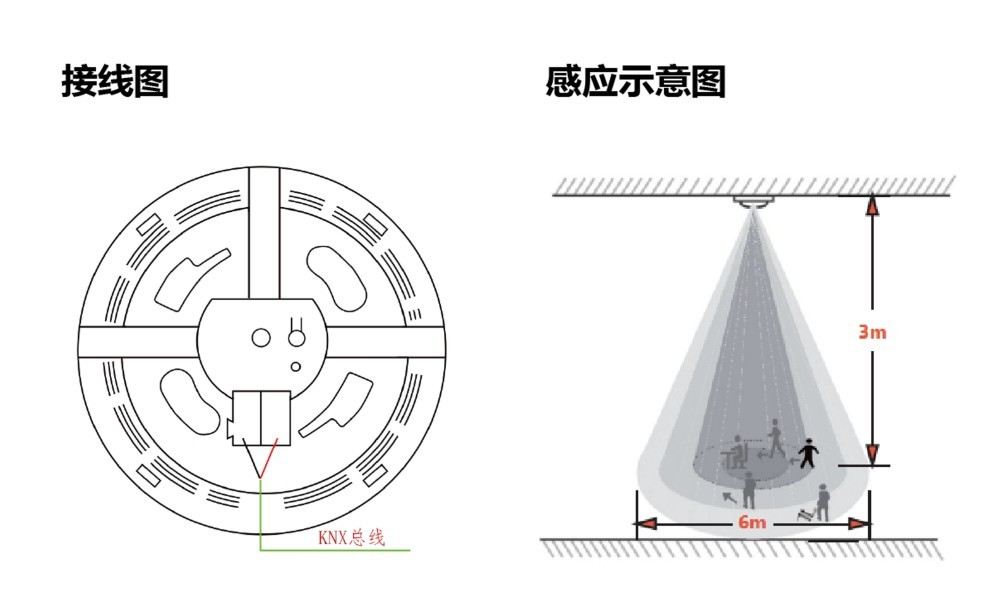

- Detection Range: Mounting height 2.5m~3m, coverage radius 5m~7m
- Housing Material: PC

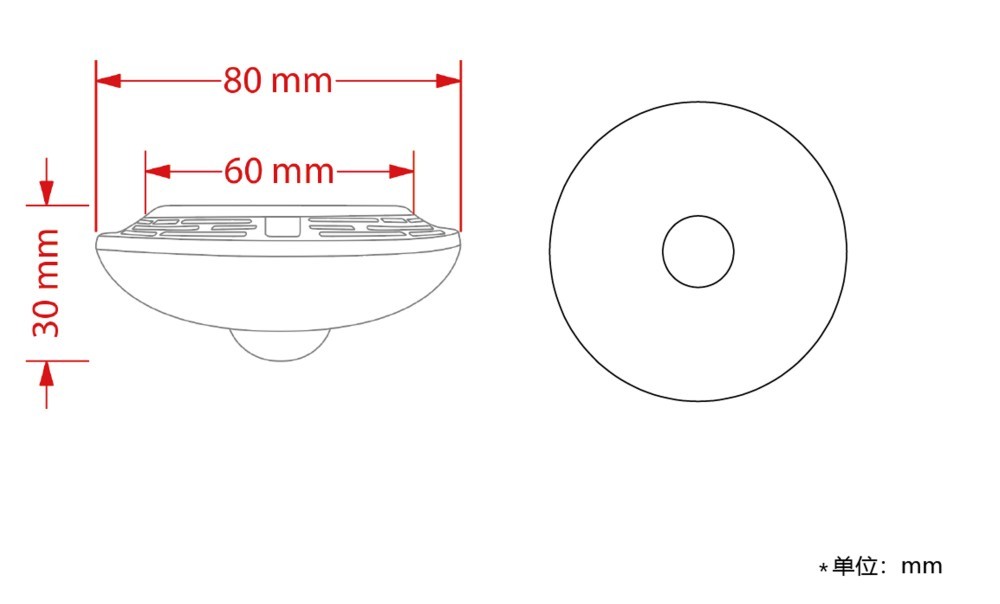

- Dimensions: H=30mm, Diameter=80mm
Installation
This device adopts flush mount ceiling installation with diameter D=80mm and height H=30mm. For quick installation, proper operation, testing, inspection and maintenance of the device must be ensured.
Safe Operation and Maintenance
(1) Maintain a well-ventilated environment.
(2) Keep away from moisture, vibration and dust during operation.
(3) Do not expose to rain, other liquids or corrosive gas.
(4) Dry the device promptly if it gets wet or contaminated by liquid.
(5) Contact professional maintenance personnel or our company if the device malfunctions.
