1-channel 16A thyristor dimming actuator module

DLA50120-K

The 1-channel 16A thyristor dimming actuator module is a modular DIN-rail mounted device adopting leading-edge dimming method. It is compatible with voltage-type dimming lamps such as LED spotlights, downlights, halogen lamps and quartz lamps. Equipped with local control buttons for manual operation and an LED status indicator to display the real-time dimming working status of the channel. It can be integrated into the intelligent lighting control system to realize intelligent dimming and local manual management for high-power lighting of a single channel.

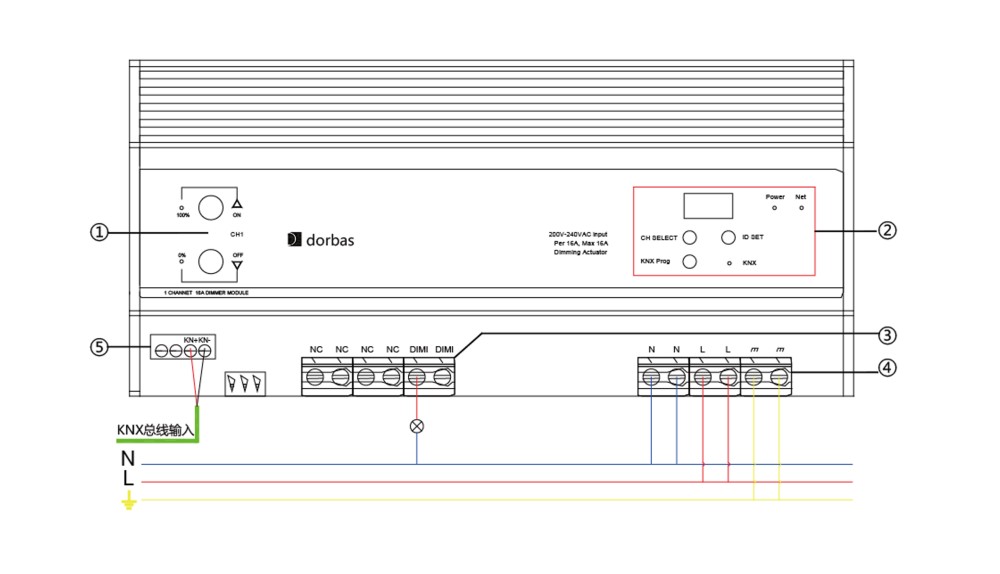

Function Overview Specifications Dimensional Drawings and Wiring Diagrams Operation and Installation Instructions

Function Overview

1 independent channel with thyristor leading-edge dimming output, rated 16A;
Supports manual dimming operation via panel buttons;
Features two dimming modes: relative dimming and absolute dimming;
Channel operating status report feedback to upload device operation information;
Built-in timing cycle function, supports staircase light delay and cyclic flashing control;
Supports on-site parameter saving and fault recovery;
Supports scene combination call control;
Compatible with voltage-type leading-edge dimming lamps such as LED spotlights, downlights, halogen lamps and quartz lamps

Specifications

Main Output: 1-channel 16A thyristor dimming
Rated Voltage: 200~240VAC
Operating Frequency: 50/60Hz
Bus Voltage: 21-30VDC
Bus Current: ≤12mA
Operating Power: ≤3.6 W
Main Output: ≤16A (1 channel)

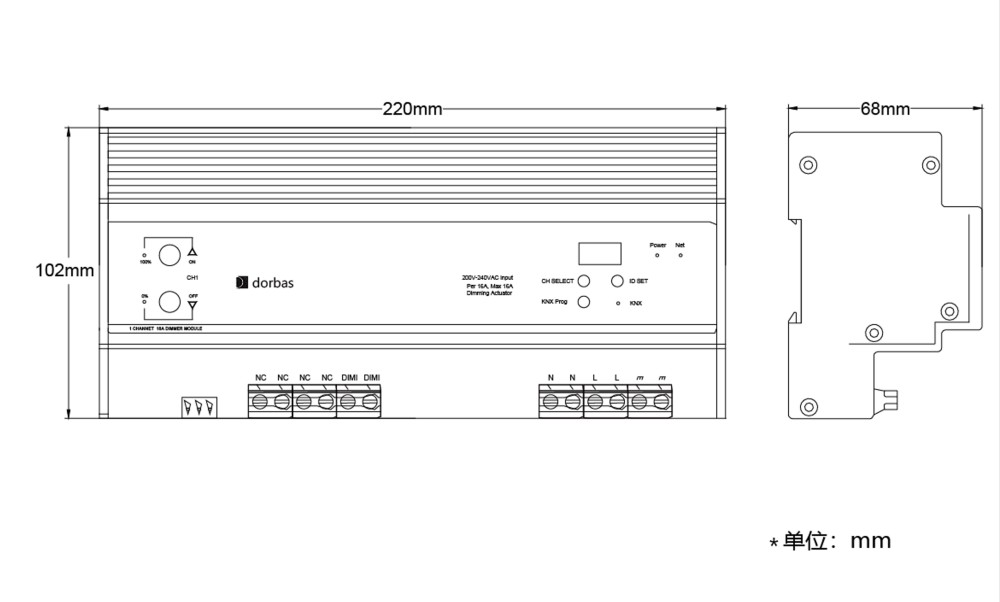

Dimensions (L x W x H): 220mm × 102mm × 68mm
Weight (approx.): approx. 1.4KG
Housing Material: Metal
Mounting: 35mm DIN rail mounting
Operating Temperature: -5°C…+45°C
Storage Temperature: -25°C…+55°C
Transport Temperature: -25°C…+70°C
Relative Humidity: max 90%

Operation and Installation Instructions

Installation Instructions

This device is installed in the distribution box and can be mounted on 35 mm DIN rails complying with DIN EN 60715 standard. To facilitate quick installation of the device inside the distribution box, proper operation, testing, inspection and maintenance of the device must be ensured.

Safe Operation and Maintenance
(1) Maintain a well-ventilated environment
(2) Keep away from moisture, vibration and dust during operation.
(3) Do not expose to rain, liquids or corrosive gas.
(4) Dry the device promptly if it gets wet or contaminated by liquid.
(5) Contact professional maintenance personnel or our company if the device malfunctions.
