4-channel 0-10V dimming actuator module
DLA5040-F
The DLA5040F-K series dimming actuator (0-10V output) is a modular mounting device with 4 channels of 0-10V output. It connects to the EIB/KNX system via EIB bus terminals. Engineering design tool ETS software (version ETS3.0f or higher) is used for physical address assignment and parameter configuration.
This actuator has 4 channels. Each channel includes one relay switch output and one 0-10V output. The 0-10V dimming signal interface, paired with a 0-10V dimming transformer, can dim incandescent lamps, fluorescent lamps, LED lamps and other light fixtures. It is equipped with manual control buttons, and LED indicators show the dimming status of each channel.
- Controls regulators or electronic ballasts via 0-10V interface output;
- With 4-channel 16A switch control;
- Supports relative dimming and absolute dimming functions;
- Features manual dimming control;
- Has status report feedback function;
- Built-in timing cycle function to realize staircase light and cyclic flashing functions;
- Supports on-site parameter saving and restoration;
- Selectable relay switch status after bus voltage recovery;
- Supports scene control;
- 4-channel I/O input function to receive control commands such as switch, curtain, dimming and scene.
- Main Output: 0-10V / 1-10V
- Main Input: 200~240VAC
- Operating Frequency: 50-60Hz
- Operating Power: ≤0.56W
- Bus Input: 21-30VDC
- Bus Current: ≤12mA
- 0-10V Output (per channel): <40mA per channel

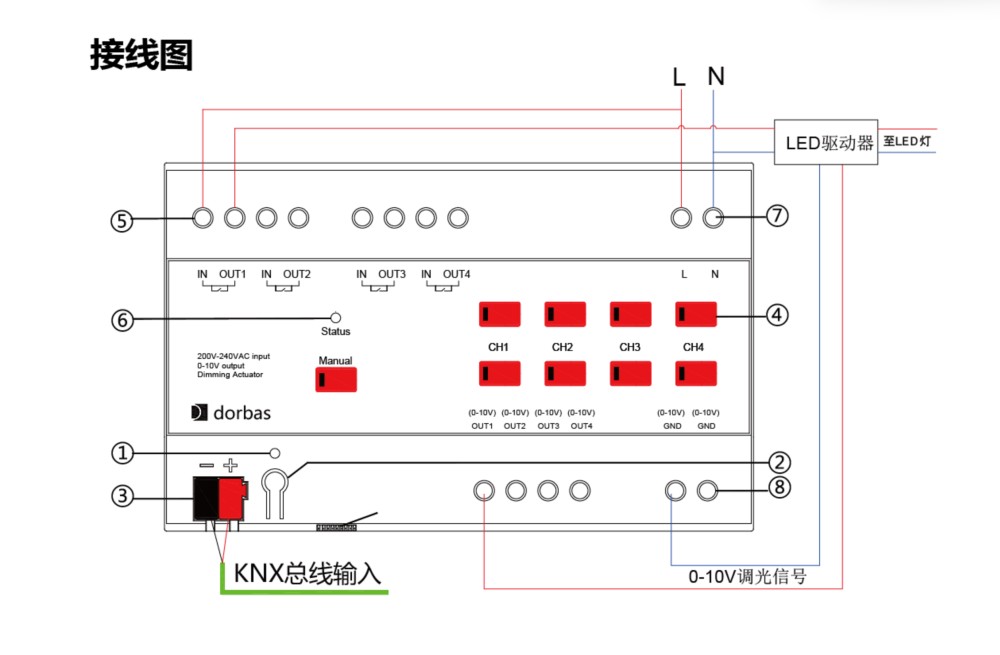

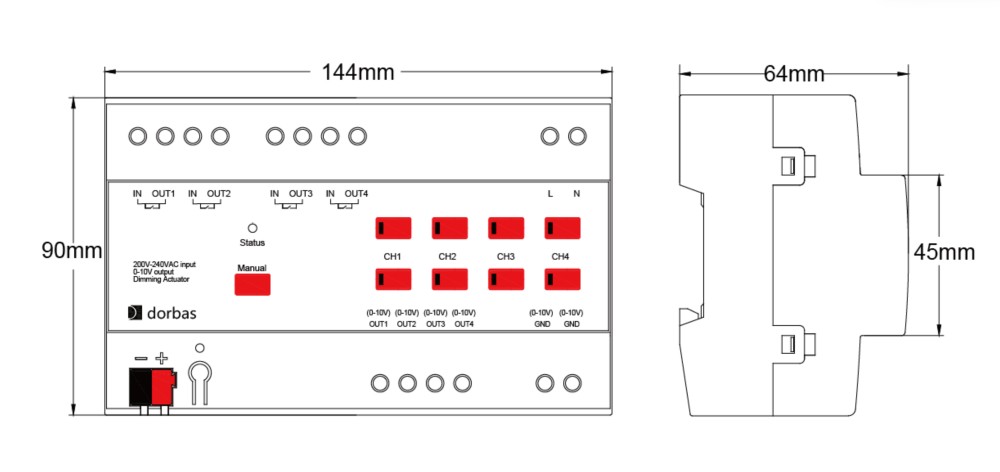

- Dimensions (H×W×D): 144mm × 90mm × 64mm
- Weight (approx.): 0.35kg
- Electrical Switch Output (per channel): Resistive load: max 16A; Incandescent lamp: max 10A; Fluorescent lamp with electronic ballast: max 4A
- Mounting: 35mm DIN rail mounting
- Pollution Degree (IEC60664-1): 2
- Ingress Protection (IEC60529): IP20
- Protection Class (IEC61140): III
- Overvoltage Category (IEC60664-1): III
- Operating Temperature: 5°C – 45°C
- Storage Temperature: -25°C…+55°C
- Transport Temperature: -25°C…+70°C
- Relative Humidity: Max 90%
Installation Instructions
This device is installed in the distribution box and can be mounted on 35 mm DIN rails complying with DIN EN 60715 standard. To facilitate quick installation of the device inside the distribution box, proper operation, testing, inspection and maintenance of the device must be ensured.
Safe Operation and Maintenance
(1) Maintain a well-ventilated environment.
(2) Keep away from moisture, vibration and dust during operation.
(3) Do not expose to rain, other liquids or corrosive gas.
(4) Dry the device promptly if it gets wet or contaminated by liquid.
(5) Contact professional maintenance personnel or our company if the device malfunctions.
