10-inch WEB Configuration Touch Screen

DTS883L

This 10-inch WEB configuration touch screen based on HTML5 specifications can collect on-site data and directly generate configuration screens for real-time data monitoring. It features user-friendly conventional configuration operations, and its configuration software can run on embedded systems. Compared with other configuration software, its highlight is full WEB-based development. The configuration projects created by users can be downloaded to the touch screen for execution. Smartphones, pads or PCs can access it via browsers, and open data interfaces are available for integration with third-party systems.

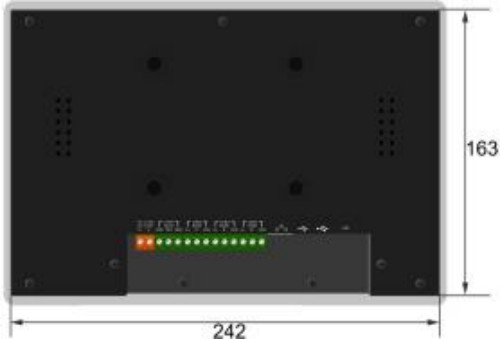

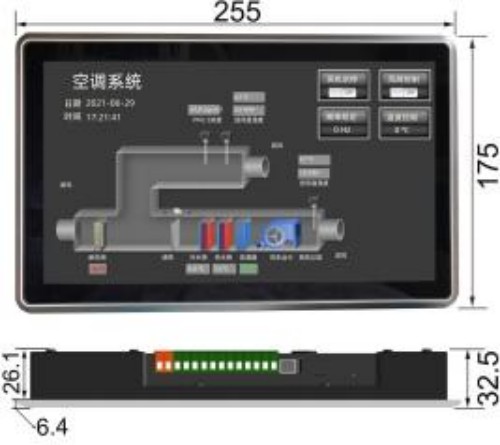

Function Overview Specifications Dimensional Drawings and Wiring Diagrams Operation and Installation Instructions

Function Overview

Green portable software, no installation required; Chinese and English supported;
Supports acquisition of over 500 protocols and conversion to BACnet Server, Modbus Server, OPC UA Server and MQTT Server simultaneously;
Supports local and cloud configuration;
HTML5 configuration pages to meet customized requirements of different customers;
Supports MQTT service, project upload to cloud and other functions;
Supports graphical programming, mixed programming of JS and PLC, schedule timing control, triggers, user management and user permissions;
Supports real-time curves, pie charts and ring charts;
Cloud configuration supported to realize remote data monitoring;
Alarm notifications via WeChat, SMS platform, DingTalk and email;
The touch screen is built with InfluxDB time-series database, with customizable storage period and up to 3 years of data storage;
Supports data storage in external databases including MySQL, SQLServer and InfluxDB

Specifications

Display:	10” TFT	Power Supply: AC/DC 12-24V
Resolution / Pixels:	1280 * 800	Ethernet Port: 1 × 10M/100M adaptive industrial network port
Touch Type:	Capacitive	Serial Ports: 3 × RS485, 1 × RS232
OS:	Linux	Cutout Dimension: 242 * 163mm (L×W)
Processor:	4-core 1.2GHz	Weight: 1.3kg
RAM:	1G	Material: Aluminum alloy front bezel, sheet metal rear housing
Flash:	8G	Temperature: -10～50℃ (operating); -20～70℃ (storage & transportation)
Power Consumption:	≤10W	Humidity:	10%～90% non-condensing (operating) 15%～95% non-condensing (storage & transportation)
Protection Rating:		Front panel IP65, rear housing IP20.
