7-inch Smart Touch Screen

DTS880L-B

This new-generation HMI human-machine interface with a 7-inch smart touch screen supports access via PC, mobile phones, iPads and other devices. Combined with configuration editing software, it can collect on-site data, compile configuration screens and display them on the touch screen to realize real-time data monitoring. Meanwhile, it supports WeChat alert, DingTalk alert, email alert and other functions. It can also act as a BACnet server, Modbus server, IEC61850 server, OPC UA server and MQTT server, and provide open HTTP WEB services for integration with third-party systems.

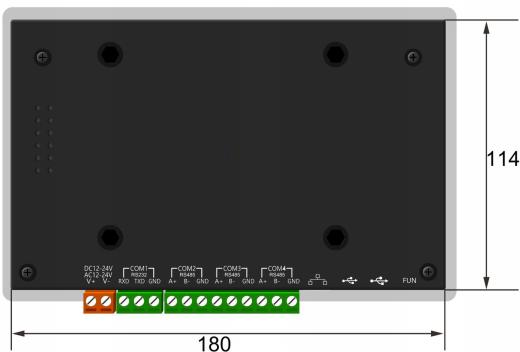

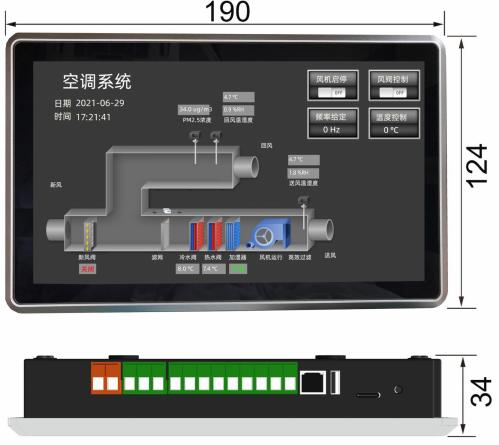

Function Overview Specifications Dimensional Drawings and Wiring Diagrams Operation and Installation Instructions

Function Overview

Green portable version, no installation required; multi-language support;
Intelligent management. Monitoring accessible via PC, mobile phones, iPads and other devices with excellent operability;
Supports data acquisition of more than 200 protocols and conversion to BACnet Server, Modbus Server, IEC61850 Server, OPC UA Server and MQTT Server;
Supports JS scripts for logic control;
Supports COV subscription;
Supports BBMD for cross-network segment access;
Supports historical data storage;
Supports linear conversion, bit extraction and high/low byte conversion;
Built-in internal variable function; online/offline status monitoring of devices;
Allows multiple user accounts for assisted device management with multi-layer security;
LAN supported for easy remote monitoring of the touch screen;
Supports multiple types of timing and event triggering, with custom functions for application extension;
Alarm notifications via WeChat, DingTalk and email;
Cloud service supported.

Specifications

Display:	7" TFT	Power Supply:	AC/DC 12-24V
Resolution / Pixels:	1024 * 600	Ethernet Port:	1 × 10M/100M adaptive industrial network port
Touch Type:	Capacitive	Serial Ports:	3 × RS485, 1 × RS232
OS:	Linux	Weight:	0.65kg
Processor:	4-core 1.2GHz	Material:	Aluminum alloy front bezel, sheet metal rear housing
RAM:	1G	Cutout Dimension:	180 * 114 mm (L×W)
Flash:	8G	Temperature:	-10 ~ 50℃ (operating); -20 ~ 70℃ (storage & transportation)
Power Consumption:	≤8W	Humidity:	10% ~ 90% non-condensing (operating); 15% ~ 95% non-condensing (storage & transportation)
Protection Rating:	Front panel IP65, rear housing IP20.
